- More precise indication than analog
- Smallest housing depth on the market
- Can be supplied with factory calibration certificate
Description

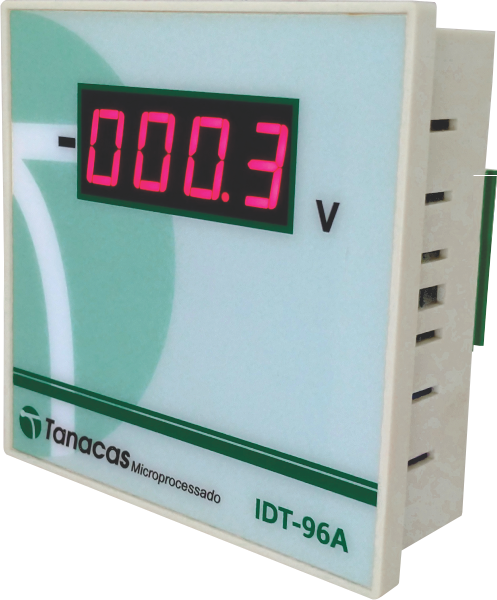

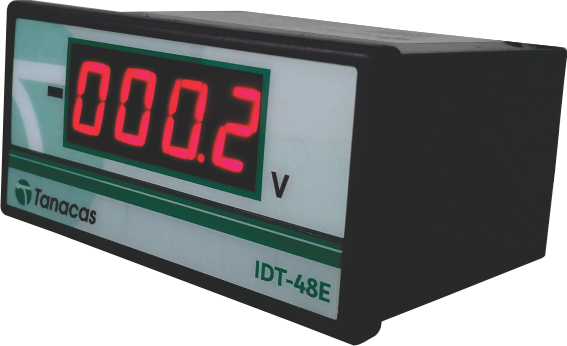

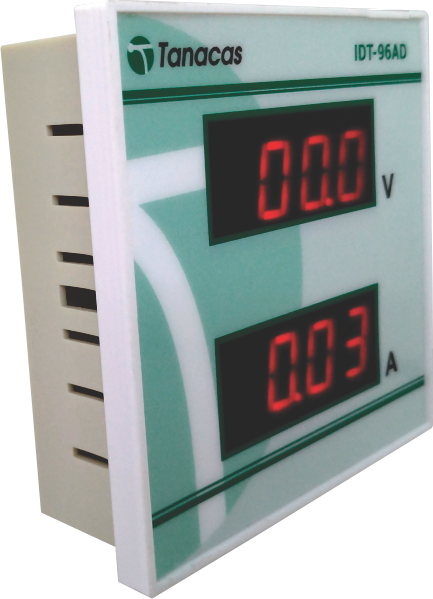

Tanacas Digital Indicators line has the smallest depth of the market, thus facilitating its assembly in electrical panels, for example, where the assembler needs practicality in the assembly, in addition to robust equipment and high quality in its measurement. For this product, a CMOS A/D converter is used, and its operation is based on the double ramp integration measurement, with an integration time of 333 ms, thus providing 3 measurements per second.
The indication can be done by red led's of 14.2 mm high with 7 segments of 3 ½ digits.
In the case of transducers, transmitters, tachogenerators, for example, the input signals can be 4-20mA, 0-10Vdc, or others. AC voltmeters and frequency meters can be self-powered as required by the user. When measuring temperature using thermocouples, the indicator is supplied with internal compensation circuit for the cold junction (reference) 25° C.
